IEC60529 Spray water test Nozzle, IPX56 water Jet Nozzle
Test Set consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve.
The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.
|
Item |
IPX5 |
IPX6 |
|
Water supply |
Water flow rate > 12.5L/min±5% clean water witho ut inclusion. |
Water flow rate > 100L/min±5% clean water witho ut inclusion. |
|

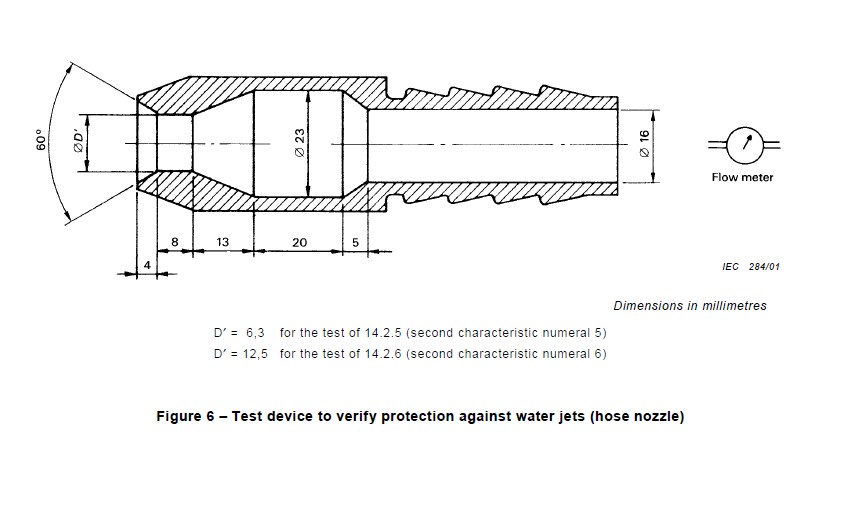

The nozzle diameter |
6.3 mm |
12.5 mm |
|
Water flow |
12.5±0.625L/min, Flow meter is adjustable. |
100±0.625L/min, Flow meter is adjustable. |
|
Testing time |
Not less than 1min/㎡(not less than 3 mins) |
|
|
Environment requirements |
Dedicated IP waterproof test room whose width is more than 3m, With good function of inflow and drainage. Wall installation. |
|
|
The distance from jet nozzle to enclosure |
2.5~3m |
|
|
Pressure Gauge |
0 - 2.5 bar ( 0 - 0.25 MPa ) |
|
|
Reference standards |
IEC60529,IEC60598-1,IEC60335-1,IEC60745-1 |
|
|
Nozzle Material |
Stainless Steel |
|
|
Include |
Pressure gauge, Stainless steel nozzle IPX5 and IPX6, Valve for water flow regulation and shut off, Hose connector. |
|
1.IPX5: spray holes of 6.3 mm, can meet the 12.5 L/min (100 L/newspapers) + 0.625 L/min;
Test method: the center of water from the nozzle diameter at 2.5 m for 40 mm circle, specimen surface water every square metre shell time about 1 min, test specimen at least 3 min, The nozzle surface distance from shell specimen should be 2.5 ~ 3 m;
2.IPX6: spray holes of 12.5 mm, can meet the 100 L/min (6000 L/newspapers) + 5 L/min;
Test method: the center of water from the nozzle diameter at 2.5 m for 120 mm circle, specimen surface water every square metre shell time about 1 min, Test time: at least 3 min, The nozzle distance: the nozzle surface distance from shell specimen should be 2.5 ~ 3 m;
