Application

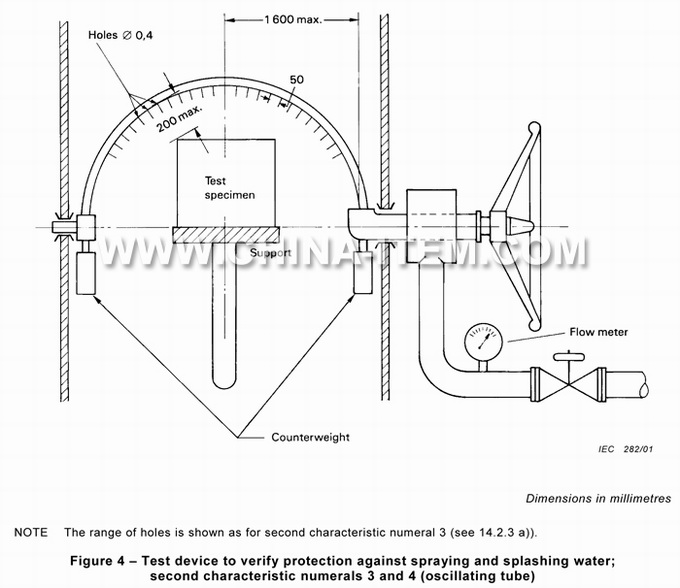

The rain test system is strictly designed according to IEC60529. It’s applied to the Electrical equipment of the waterproof test of IPX3 and IPX4.

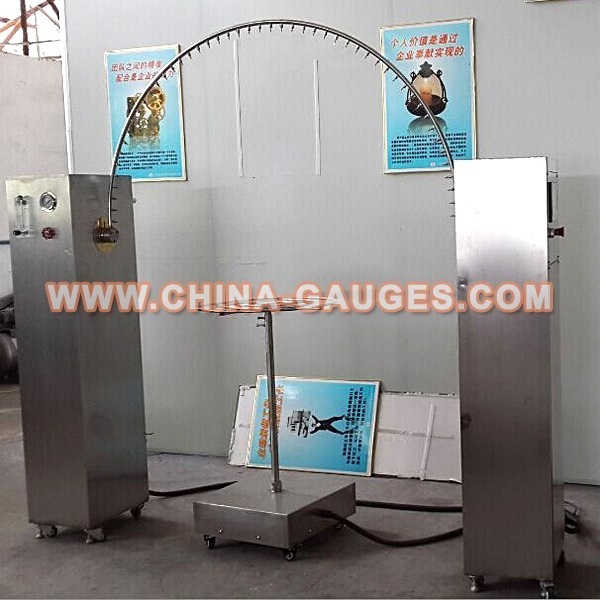

IPX3 IPX4 Oscillating Tube Tester is composed of three parts: The swing pipe, swivel table and swing pipe column (by the water tank, water pump, float valve, flow meter, pressure gauges, pressure regulating valves, water filter, motor, electric control system, etc.).
Technology Parameter
|
Power Supply |
Single phase AC220V, 50Hz |
|
Swing Pipe diameter |
15mm (304 stainless steel) |
|
Swing Pipe radius |
R800mm; |
|
Orifice diameter |
0.4mm |
|
Orifice angle |
IPX3: 120°; IP4X: 180° |
|
Pendulum Angle |
IPX3: 120°(±60°); IPX4: 360°(±180°) |
|
Swing Pipe Speed |
IPX3: 4s/time (2x120°) IP4X: 12s/time (2x180°) |
|
Water discharge |
1-10L/min, adjustable |
|
Test time |
0-999mins, can preset |
|
Swivel table diameter |
600mm |
|
Swivel table speed |
1-5 rpm/min |
|
Adjustable telescopic pipe height |
1000-1700mm |
