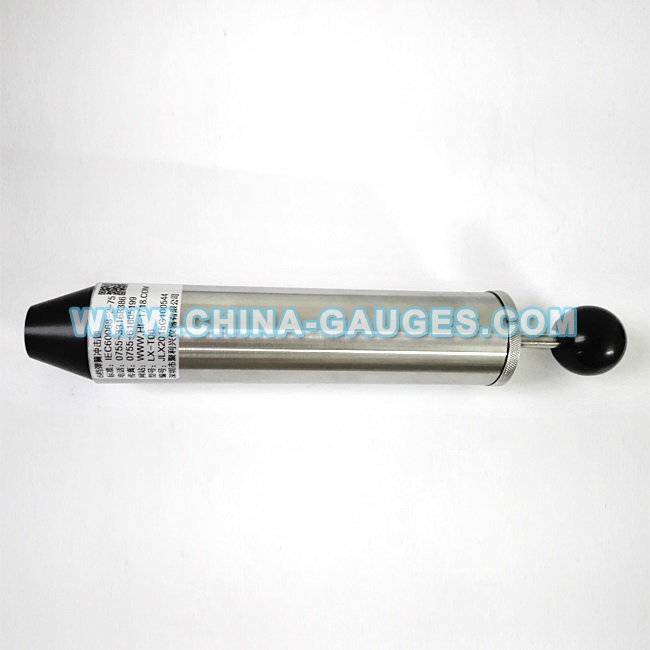

Universal Impact Spring Hammer

IEC60068-2-75 Universal Impact Spring Hammer

1.Introduction:

(1) Universal Impact Spring Hammer is strictly designed according to IEC60068-2-75 standard.

(2) After applying the impact with the hammer, the products is examined with accessibility probes to determine access to chock,energy,and injury hazards. Built in exact accordance to IEC/EN/UL/CSA and other standards.

2.Application:

Adjust the impact severity by rotating the knurled cap until the desired energy- alue is displayed. Pull the knob slowly out of the device until it locks in place. If moved too fast, the clamp may skip its arrester and will lock at its way back when the pulling- orce declines. Hold the device horizontally at it’s housing tube and press the (black) release cone to the specimens plane of impact.

The strike is automatically released when the release force threshold is reached

Universal (6 level): 0.14J, 0.20J, 0.35J, 0.50J, 0.70J, 1J adjustable

Impact energy error:

 0.14J ± 0.014J

 0.20J ± 0.020J

 0.35J ± 0.03J

 0.50J ± 0.04J

 0.70J ± 0.05J

 1.00J ± 0.05J

 Technical parameters:

 Length: 211mm

 Weight: 1250g

 Diameter: 50 mm

 Hammer Weight: 60g

 Hammer radius: 10mm

 Shock components: including hit ball and hammer handles, weighs 250g, the hammer is made from white polyethylene imine first

 The impact of the release of force: less than 10N
