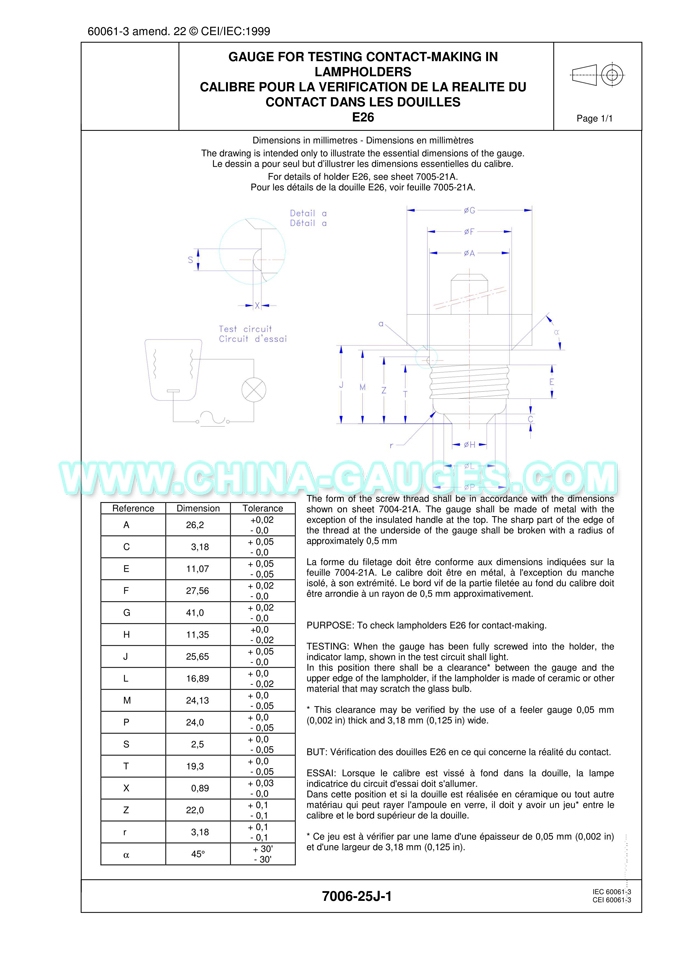

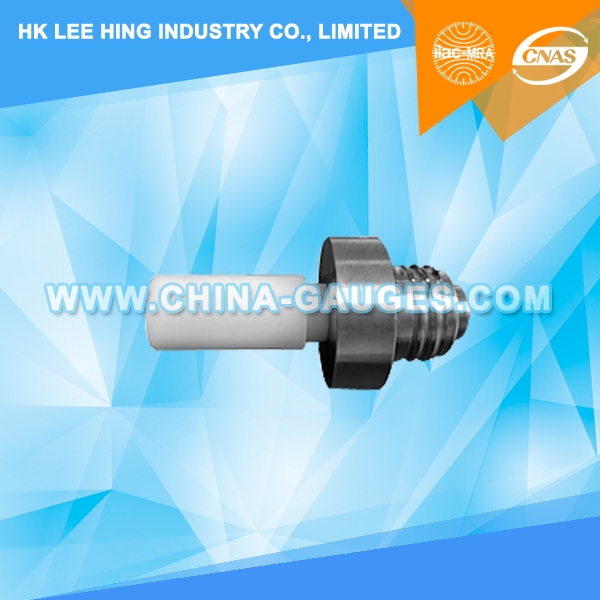

E26d Gauge for Testing Contact-Making in Lampholders 7006-25J-1

E26d Gauge for Testing Contact-Making in Lampholders 7006-25J-1

The form of the screw thread shall be in accordance with the dimensions shown on sheet 7004-21A. The gauge shall be made of metal with the exception of the insulated handle at the top. The sharp part of the edge of the thread at the underside of the gauge shall be broken with a radius of approximately 0,5 mm.

PURPOSE: To check lampholders E26 for contact-making.

TESTING: When the gauge has been fully screwed into the holder, the indicator lamp, shown in the test circuit shall light.

In this position there shall be a clearance* between the gauge and the upper edge of the lampholder, if the lampholder is made of ceramic or other material that may scratch the glass bulb.

* This clearance may be verified by the use of a feeler gauge 0,05 mm (0,002 in) thick and 3,18 mm (0,125 in) wide.

HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: go no go gauges, IP Tester, test probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, Plugs and Socket Outlet Gauge, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
