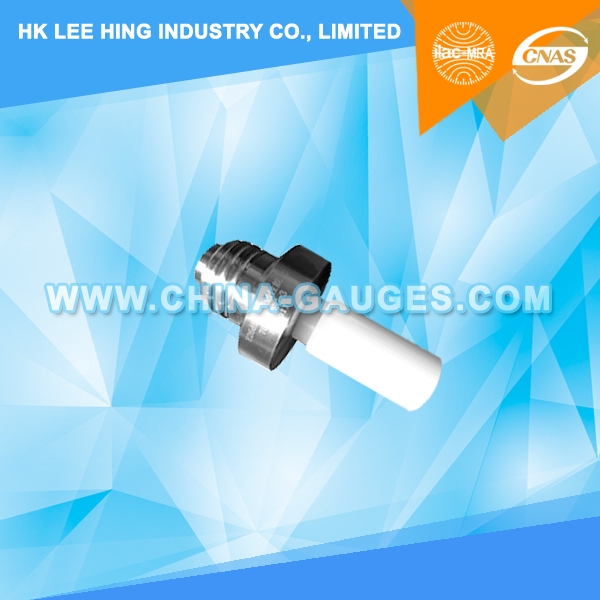

E26d Gauge for Testing Contact-Making in Lampholders 7006-29G-3

E26d Gauge for Testing Contact-Making in Lampholders 7006-29G-3

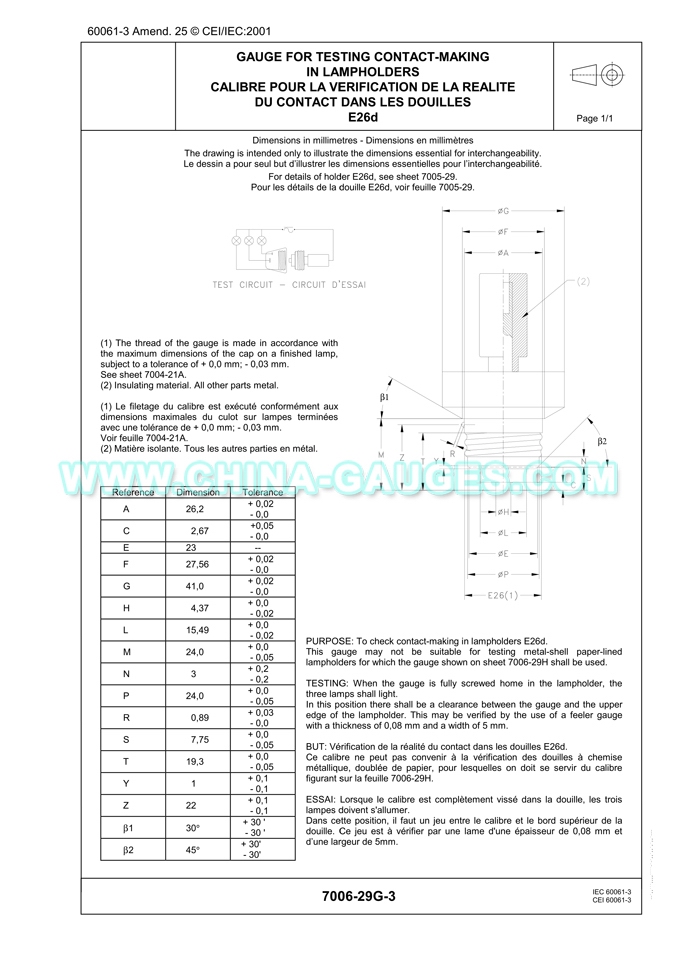

(1) The thread of the gauge is made in accordance with the maximum dimensions of the cap on a finished lamp, subject to a tolerance of + 0,0 mm; - 0,03 mm.
See sheet 7004-21A.
(2) Insulating material. All other parts metal.

PURPOSE: To check contact-making in lampholders E26d.
This gauge may not be suitable for testing metal-shell paper-lined lampholders for which the gauge shown on sheet 7006-29H shall be used.

TESTING: When the gauge is fully screwed home in the lampholder, the three lamps shall light.
In this position there shall be a clearance between the gauge and the upper edge of the lampholder. This may be verified by the use of a feeler gauge with a thickness of 0,08 mm and a width of 5 mm.

HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: go no go gauges, IP Tester, test probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, Plugs and Socket Outlet Gauge, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
