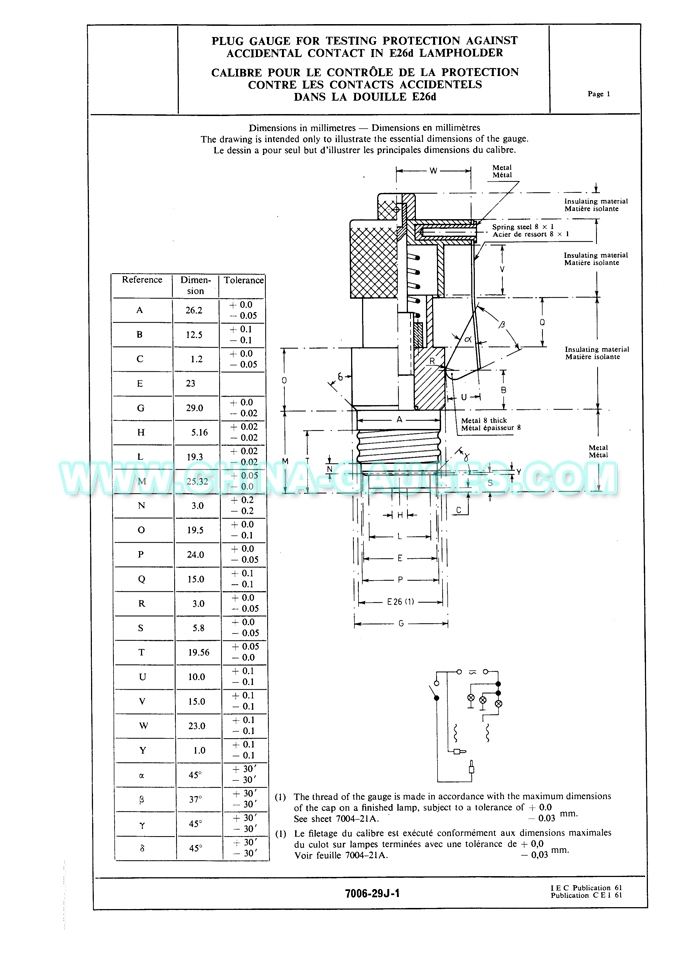

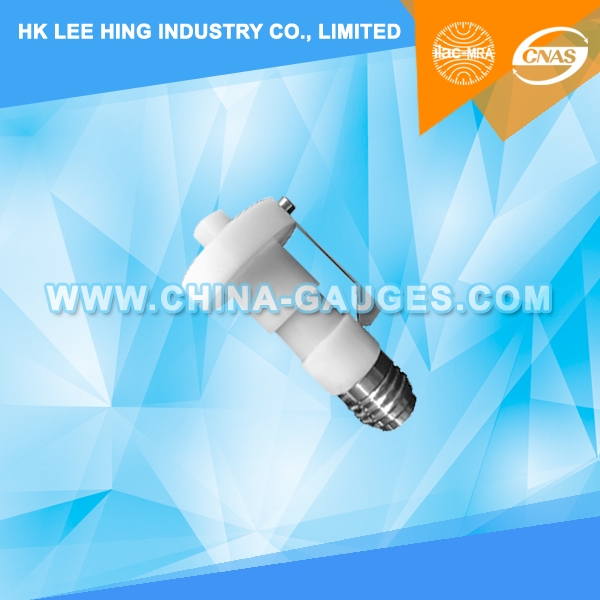

E26d Plug Gauge for Testing Protection Against Accidental Contact in Lampholder 7006-29J-1

E26d Plug Gauge for Testing Protection Against Accidental Contact in Lampholder 7006-29J-1

(1) The thread of the gauge si made in accordance with the maximum dimensions of the cap on a finished lamp, subject to a tolerance of +0.0mm -0.03mm.

See sheet 7004-21A.

PURPOSE: To test protection against accidental contact of the cap of a lamp fully screwed home in the lampholder.

TESTING: With the switch open, the gauge is screwed tinto the lampholder as far as it will go. The test contact is then slid as far as it will penetrate into the lampholder . In this position none of the indicator lamps shall light.

NOTE: If, as in some countries, it is required to check the protection against accidental contact with the cap during insertion of a lamp, the test method should be as follows:
With the switch closed, the gauge is screwed into the lampholder until one of the indicator lamps lights.

The switch is then opened and the test contact is slid as far as it will penetrate into the lampholder.

In this position none of the indicator lamps shall light.

HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: go no go gauges, IP Tester, test probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, Plugs and Socket Outlet Gauge, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
