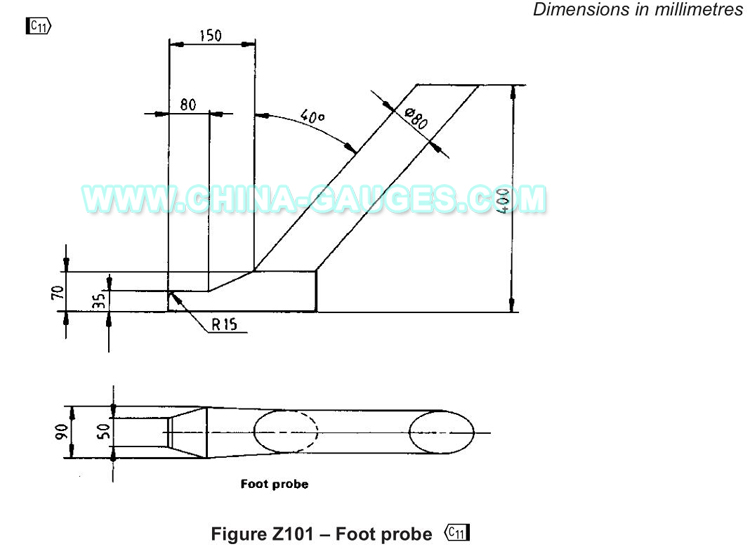

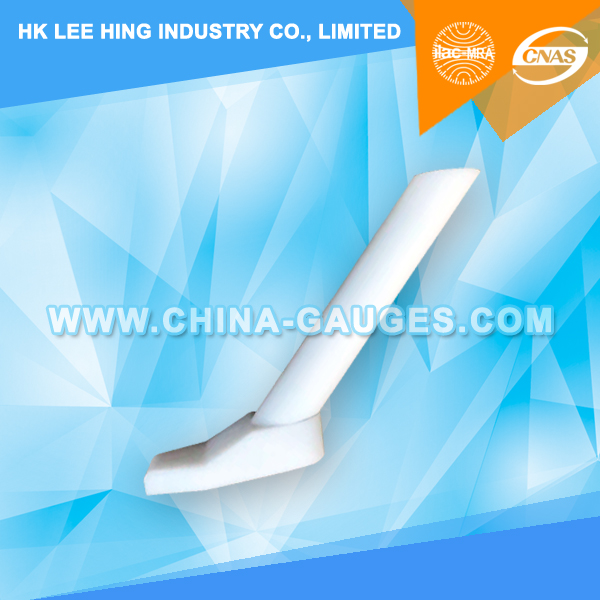

Foot Probe of BS EN 60335-2-2 Figure Z101

Application:

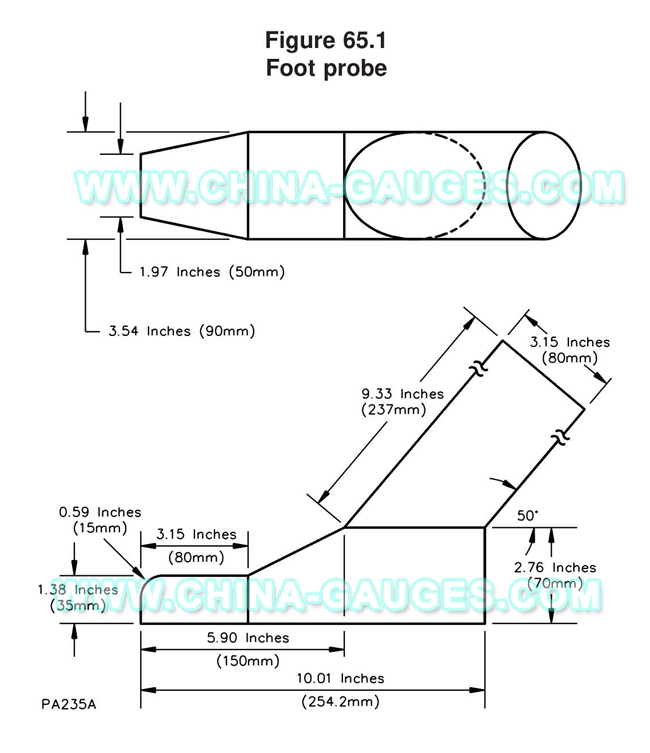

The Foot Probe conforms to the standard of BS EN 60335-2-2 Figure Z101 and UL 1447 Figure 65.1. The standard requires rotary power mowers to have protective shields.

These shields prevent the operator's foot from contacting the blade, either under the mower's deck or in the discharge chute area, when the operator has his or her hands on the mower's controls. Generally, a shield must prevent a foot probe from entering the path of the mower blade or from forcing any part of the mower into the path of the blade. The only difference between the UL Foot Probe and International Foot Probe is the length of the simulated leg.

HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services andrelated information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.

Main Products: go no go gauges, IP Tester, test probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Security Testing Machine, Plugs and Socket Outlet Gauge, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.

If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
