> IP Testing Equipment

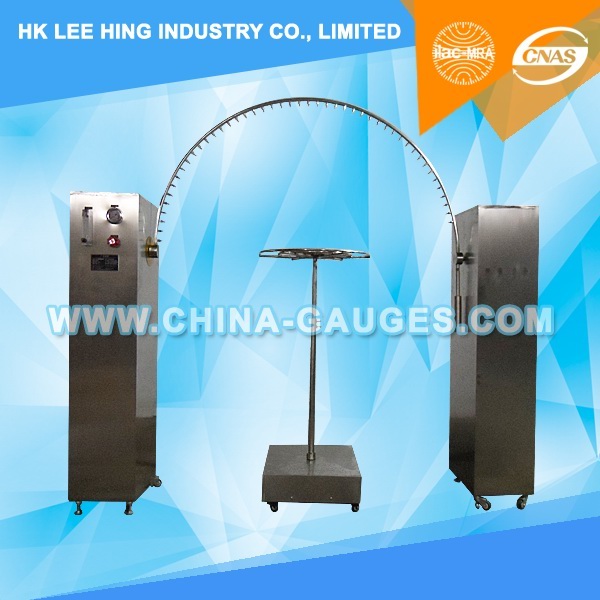

IPX3-4 Oscillating Tube Test Device

Measurement & Analysis Instruments > Safety Instrument
Place of Origin: Include ISO 17025 CNAS & ILAC Test Report
Item No.: LX-IPX34R
Rated Output: Made in China
Product Description: The ipx3/4 waterproof test chamber is strictly designed according to IEC60529. It' s applied to the Electrical equipment of the waterproof test of IPX3 and IPX4.
Inquiry

Product introduction

Test standard:

IPX3/4 Oscillating Tube Tester is designed according to the relevant standard requirements of IEC60529:1989+A1:1999 IPX3/4.

Application:

The main role of IPX3/4 Oscillating Tube Tester is to test products storage, transport and use in the rain climate environment. It is widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and its spare parts and other products.

After the test, to determine the performance of the product through the identification is able to meet the requirements, in order for use of the product design, improvement, identification and factory inspection.

Features:

1. Two column type structure, easy to install and move.

2. The equipment is made of high quality Aluminum Alloy model and SUS304 stainless steel plate, to ensure the long time use does not rust.

3. Turntable electrical part fully sealed to prevent water leakage.

4. Water tank automatic control water by the float valve, pump selection of brands stainless steel self-priming pump, water tank made of high quality SUS304 stainless steel welded, and the waterway made of high quality SUS304 stainless steel and PP-R material to prevent rusting of pipeline, and affect the test results.

5. Column on the left panel placed tube installed flowmeter, pressure gauge and pressure regulator, flow rate and pressure can be visually displayed and adjusted.

6. High precision filter can effectively filter impurities in tap water, to prevent clogging of the needle tip, while the filter is installed on the outside of the filter cartridge can be easily replaced.

7. The turntable uses the speed regulating motor, stepless adjustable speed in the standard scope, and can control the forward and reverse rotation(suitable for electric test sample).

8. The control system consists 7-inch touch screen and Panasonic PLC as the core and brands consisting of a stepping motor, put the tube speed, angle precision adjustable.

9. Main low-voltage electrical components are all made of LG and OMRON and Julixing other brands. Wiring process conform to the requirements of the standard, panel layout is reasonable, the connection is firm, marked clearly, ensure the quality of the products.

10. Samples power-off time can be set, power 0-999M, off 0-999M.

11. Test time can be set 0-999Madjustable, one key to start, automatic shutdown, simple and intelligent.

Specifications:

Item No.	LX-IPX800R	LX-IPX1000R	LX-IPX1200R	LX-IPX1400R	LX-IPX1600R
Equipment Dimensions (mm)	L2400D1800H2000	L2800D2200H2200	L3200D2400H2400	L3600D2800H2600	L4000D3200H2800
Swing Tube Radius (mm)	R800 (can add R600,R400)	R1000 (can add R800, R600, R400)	R1200 (can add R1000,R800, R600,R400)	R1400 (can add R1200,R1000,R800,R600, R400)	R1600 (can add R1400, R1200,R1000,R800,R600, R400)
Flow (L/mm)	0.5 ~ 10.0 (Manually adjustable)
Nozzle Diameter (mm)	Φ0.4
Swing Tube Inner Size(mm)	15
Turntable Diameter (mm)	Φ600	Φ600	Φ800	Φ1000	Φ1200
Turntable TableUp-downAdjustmentRange(mm)	950 ~ 1550	1000 ~ 1700	1000 ~ 1700	1000 ~ 1700	1200 ~ 2000
Turntable Table Max. Load (kg)	50	50	100	100	100
Turntable Speed	1 ~ 5 r/min
Swing Tube Angle	±60°, 180° (Arbitrary angle adjustable)
Swing Tube Speed	120°for 4S, 360°for 12S
Box Material	SUS304 stainless steel
Turntable Material	SUS304 stainless steel
Protection Function	no water, leakage, and short circuit
Power Supply	220V
Power	1KW
