Socket Protective Test Needle with 1N of IEC60884

Measurement & Analysis Instruments > Safety Instrument
Place of Origin: Include ISO 17025 CNAS & ILAC Test Report
Item No.: LX-1N
Rated Output: Made in China
Product Description: To calibrate the gauge, a push force of 1 N is applied on the steel rigid wire in the direction of its axis: the characteristics of the gauge internal spring shall be such that the surface A – A′ is b
Inquiry

Product introduction

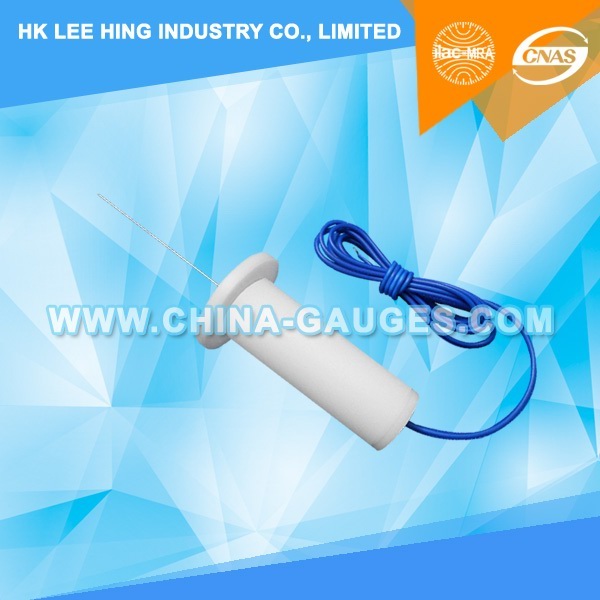

CEI IEC 60884-1 Figure 10 Socket-outlets Protection test probe with 1N Force

Basic Introduction:

1. According to : IEC 60884 Fig 10

2. The test probe is used for household and similar electrical appliances of necessary protection of against electric shock test apparatus; Gauge for checking non-accessibility of live parts, through shutters, and of live parts of socket-outlets with increased protection.

Technical Parameters:

Gauge: 3mm*1mm(wide * thick);

Diameter: φ1.0mm

Test probe length: 80mm

Force: 1N

Material: The handle is made of nylon, tip is made of hardened steel

To calibrate the gauge, a push force of 1 N is applied on the steel rigid wire in the direction of its axis:
the characteristics of the gauge internal spring shall be such that the surface A – A′ is brought practically to the same level as the surface B – B′ when this force is applied.

Figure 10 – Gauge for checking non-accessibility of live parts, through shutters, and of live parts of socket-outlets with increased protection
