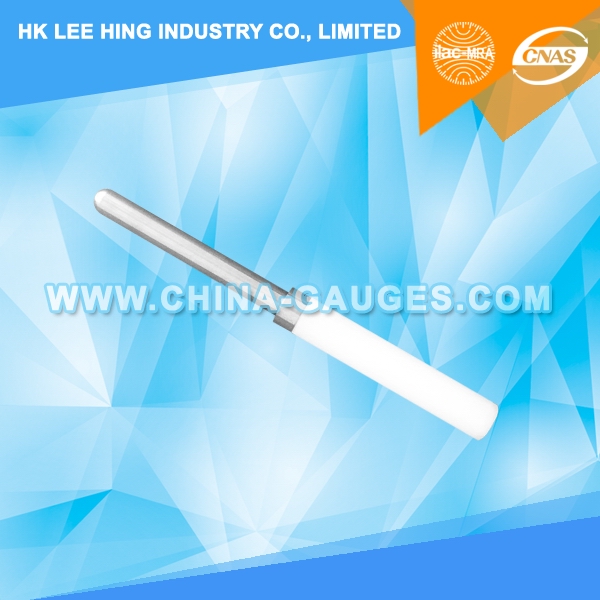

UL 2200 Figure 8.3 Probe for Film-coated Wire in Generators
- Measurement & Analysis Instruments > Safety Instrument
- Place of Origin: Include ISO 17025 CNAS & ILAC Test Report
- Item No.: LX-PA140B
- Rated Output: Made in China
- Product Description: According to standard UL 2200 Fig. 8.3.
Product introduction

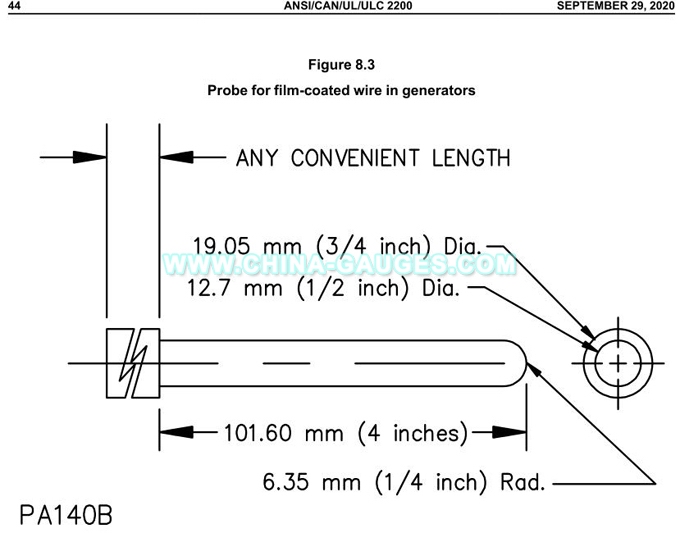

UL 2200 Figure 8.3 Probe for Film-coated Wire in Generators
Technical parameters:
1. Total Length: 101.60mm (4 inch)
2. Head Diameter: 12.7mm (1/2 inch)
3. Former Head Radius: 6.35mm (1/4 inch)
4. Tail Diameter: 19.05mm (3/4 inch)
HK LEE HING INDUSTRY CO., LIMITED are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.
Main Products: go no go gauges, IP Tester, test probe Kit, Impact Test Equipment, Test Probes, Spring Hammer, IEC 61032 Test Finger, AC Hipot Tester, IEC Test Probe, UL Test Probe, Material Flammability Tester, IP Code Tester, Impact Test Apparatus, Plugs and Socket Outlet Gauge, Security Testing Machine, Lamp Cap Gauge Tester, Lampholders Gauge Tester, Plug & Socket Tester, Electrical Safety Tester, LED Test Instruments, Environmental Test Equipment, Instrument Accessories, Weighing Sensor and More.
If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
