> Plug and Receptacles Gauge

UL 498 2012 Plugs and Receptacles Gauges

Measurement & Analysis Instruments > Safety Instrument
Place of Origin: Include ISO 17025 CNAS & ILAC Test Report
Item No.: LX-UL498
Rated Output: Made in China
Product Description: UL 498 Plugs and Socket Outlets Gauge. According to standard UL 498:2012.
Inquiry

Product introduction

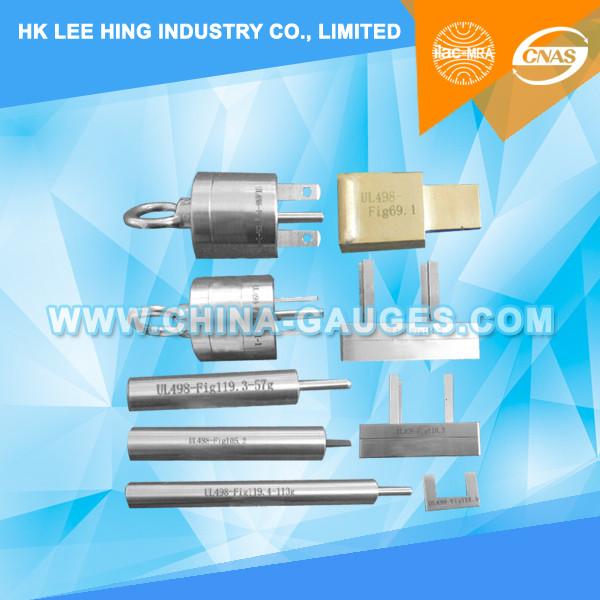

UL 498 : 2012 Plugs and Receptacles Gauges

1. Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to UL 498:2012 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.

2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC;Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.

3.Specifications:

Item	Figure No.	Describe	Quantity
1	UL498-2012 Figure 9.1	Articulate probe with web stop	1
2	UL498-2012 Figure 10.1	Probe	1
3	UL498-2012 Figure 31.1	Flat probe	1
4	UL498-2012 Figure 73.1	Reference plug	1
5	UL498-2012 Figure 73.2	Typical test apparatus	1
6	UL498-2012 Figure 98.1	Improper insertion test blades	2
7	UL498-2012 Figure 109.1	Test plug	2
8	UL498-2012 Figure 109.2	Test blade	1
9	UL498-2012 Figure 122.1	Receptacle test fixture	1
10	UL498-2012 Figure 122.3	Push out tool	1
11	UL498-2012 Figure 122.5	Bridge	1
12	UL498-2012 Figure 123.1	Test pin A	1
13	UL498-2012 Figure 123.2	Test pin B	1
14	UL498-2012 Figure 123.3	57g ground pin	1
15	UL498-2012 Figure 123.4	113g ground pin	1
16	UL498-2012 Figure 133.2	No.14AWG test pin	1
17	UL498-2012 Figure 136.1	Small test probe	1
18	UL498-2012 Figure 165.2	Fixture for assembly security test	1
19	UL498-2012 Figure SD 5.1	Standard grounding pin	1
20	UL498-2012 Figure SD 13.1	Standard grounding pin	1
21	UL498-2012 Figure SD 13.2	Over size ground pin	1
